API secure

We use RSA authentication to secure communication between your system and our servers. It uses the RSA algorithm to make sure all requests are real and not changed.

How it works:

You create a signature with your private key and send it with the request.
We check the signature using your public key.
Only requests with a valid signature are accepted.

Benefits:

Strong security: Each request is signed, so it cannot be changed or reused.
No shared secrets: Your private key stays safe in your system.
Data integrity: Payment data is protected and cannot be changed during transmission.

Steps to generate the Signature

1. Generate Key Pair

The RSA algorithm is used for request signing. Each party generates an RSA key pair and exchanges public keys. When sending a request, the private key is used to sign the data, and the recipient verifies it with the corresponding public key. A private key must be generated using the method below, and the associated public key uploaded to CodePay.

In Java, the private key format must be PKCS8; in other languages, use PKCS1. The key length should be 2048 bits. Public keys are typically in PEM format, but some languages (such as C#) require DER format, which may require conversion.

If you’re not sure how to generate RSA2 keys, we recommend using the tool below. With it, you can quickly generate keys, create signatures, and verify them—all in just one click:
CodePay Key Tool
You can also manually generate RSA2 keys using openssl, as shown below:

# 1. Generating the private key
openssl genrsa -out client_private_key_php_dotnet.pem

# 2. If you are a Java developer, convert the private key to PKCS8 format, other development languages use the PKCS1 format
openssl pkcs8 -topk8 -inform PEM -in client_private_key_php_dotnet.pem -outform PEM -nocrypt -out client_private_key_pkcs8.pem

# 3. Generate the public key
openssl rsa -in client_private_key_php_dotnet.pem -pubout -out client_public_key_php_dotnet.pem

# 4. Generate the private key that can be used in Java
cat client_private_key_pkcs8.pem | grep -v "^\-" | tr -d "\n" | sed 's/%$//' > client_private_key_java.pem

# 5. Generate the public key that can be used in Java
cat client_public_key_php_dotnet.pem | grep -v "^\-" | tr -d "\n" | sed 's/%$//' > client_public_key_java.pem

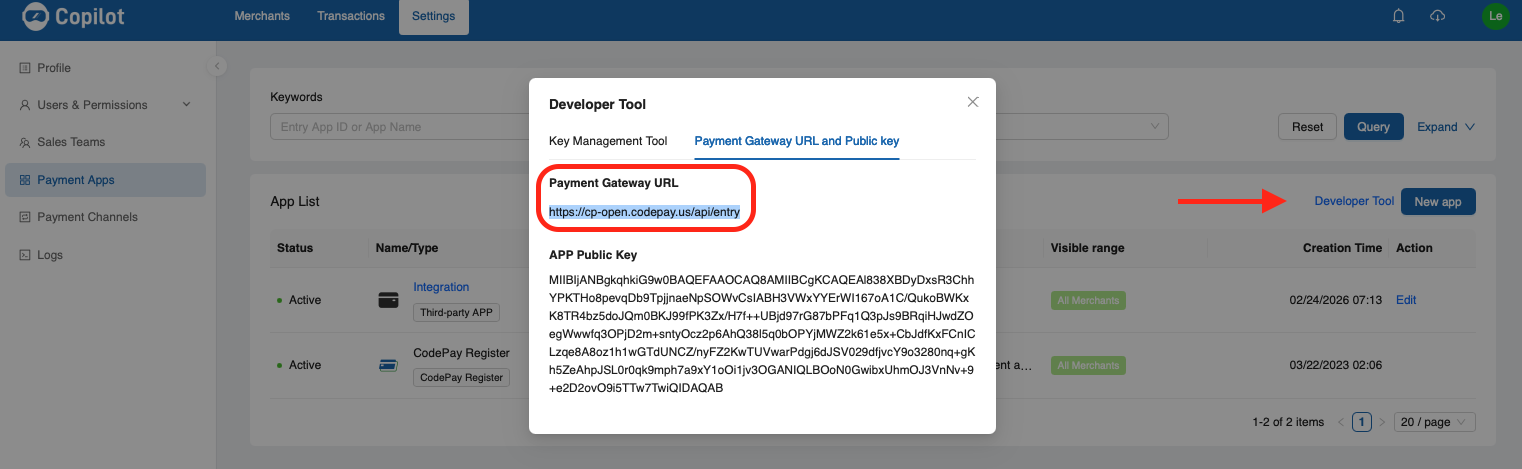

2. Upload your public key to CodePay Paypilot

If you have not created your payment app yet, please follow Create your Payment App ID .
Select your payment app name, go to the API security tab.
Choose RSA signature as the authentication type.
Enter your public key in the RSA Public Key field.
Select Submit.
Know your API endpoint URL

3. Constructing the String to be Signed

Step 1: Get Your Parameters Ready for Signing

The parameters you need to sign include:

API request parameters
Response parameters
Asynchronous notification parameters

👉 Make sure to exclude the sign parameter itself, as well as any parameters with NULL or empty string values.

tip

When making a POST request, parameter values that contain special characters (such as & or @) must be URL-encoded so the server can process them correctly.

⚠️ Important: For signing, always use the original value, not the encoded one.

Example:

Parameter to sign: test@msn.com ✅
Not this: %40msn.com ❌

Here’s an example of the parameter array:

String [] parameters={
  "app_id=wzxxxxxxxxxx",
  "method=pay.orderquery",
  "format=JSON",
  "charset=UTF-8",
  "sign_type=RSA2",
  "version=1.0",
  "timestamp=1908901287917",
  "merchant_no=M100001876",
  "out_trade_no=TB20181030000875",
  "description="
  };

These are the parameters to include in the signature. Following the rules, any empty values (like description) should be excluded from the signature.

String [] parameters={
  "app_id=wzxxxxxxxxxx",
  "method=pay.orderquery",
  "format=JSON",
  "charset=UTF-8",
  "sign_type=RSA2",
  "version=1.0",
  "timestamp=1908901287917",
  "merchant_no=M100001876",
  "out_trade_no=TB20181030000875"
  };

caution

Because JSON object keys are unordered, the signature rule only uses first-level keys and their values.

For nested JSON objects, make sure to convert their values to strings before generating the signature and sending the HTTP request.

This is an invalid JSON message. The value of key3 is a nested JSON object and must be converted to a string before signing.

{
    "key1":"value1",
    "key2":"value2",
    "key3":{
        "subkey31":"subvalue31",
        "subkey32":"subvalue32"
    }
}

This is a valid JSON message. The value of key3 is a nested JSON object that has been converted to a string:

{
    "key1":"value1",
    "key2":"value2",
    "key3":"{\"subkey31\":\"subvalue31\",\"subkey32\":\"subvalue32\"}"
}

Step 2: Sort Your Parameters

Sort the parameter names by their ASCII values in ascending order (a → z). If the first letters are the same, compare the second letters, and so on.

Here’s the array after the first sorting step:

String[] parameters={
    "app_id=wzxxxxxxxxxx",
    "charset=UTF-8",
    "format=JSON",
    "merchant_no=M100001876",
    "method=pay.orderquery",
    "out_trade_no=TB20181030000875",
    "sign_type=RSA2",
    "timestamp=1908901287917",
    "version=1.0"
  };

Step 3: Combine the Parameters

Join the sorted parameters using the & character, like in the example above:

app_id=wzxxxxxxxxxx&charset=UTF-8&format=JSON&merchant_no=M100001876&method=pay.orderquery&out_trade_no=TB20181030000875&sign_type=RSA2&timestamp=1908901287917&version=1.0

4. Generate the Signature Using the Signature Function

Use the RSA2 signing function in your preferred programming language to sign the string you built in Step 2. The signature is calculated using the SHA256WithRSA algorithm.

sign=base64UrlEncode(sha256withrsa(<Content_To_Be_Signed>), <appRsaPrivateKey>);

The example below can help you verify that your signature was generated correctly:

My PKCS8 private key is:MIIEvQIBADANBgkqhkiG9w0BAQEFAASCBKcwggSjAgEAAoIBAQCJ9N8YTm0wEuBye5zSiZKncNIg6WBvTHjg4dYc9BH0zR+LeHd/jVo+InrMiIFgblnf7eYJ/wlPG5cSMMSyQMHj/7o0prc+VZsqi1mjX88InK4qDl6qFBFrg4dRrCAwILLVOP/ppUU3souMmnYnvOSUyuLBnhSno8qTpFSbcFAkPaHRmUmcTtVPWuNNbPaZVlNn81imIIVw8LKzOzCz9CNNcikkvbUlZp/cZ0Fl3s6icqOCjRvamg8KLZJs9D52S20X60ynreEIn8g6lr77byOGCCRwpdMl9Cl89WmbC3A3RKh7GRPtjyx3B5aQqE3sK5sNT8H8/EqcnQe8QoVBs7x1AgMBAAECggEAbE6vB+oqlt97DuY1TKVtWb+dePFAIKEtFYC4FKsZndOcvGaripxzCO0Q85sH16lLLh8bxyVPLag/hqx7AGcO0e1nRwbMPkf/NfuJOFZzuBMqOSJm96ghtQLiLiCwdJh3Ticd41U5bmziWlS6BqCp5JcUR2XQWXyiAh+1vQMEKC56CNPxr7imXITS7BYdY0qiGiOANcoEJhfQXn4BjzEm2FJufdlHW6/IeRYZ874HF3/7aUOyhbnapxYHU9PzicMc9XwerMcXMGvOfTUnCtRVONLn7jiknbpwdZ1d8PoItUZuaXdAyY6wFHZF+KvyrEoOV0eWRYzPgku2oSMD7IckUQKBgQDy+etogil+3F8S/qW1WiG6l2tLx5cwq3Ak9weN1zOo8A43obtXRxW2b4fDeol8y6LmYaIW9kKmK0qHEx5LoUSH7VN3FigNpFSa6muVJUuY+ob4H3Je+h3PaqbwhVFzjDofuIolPiJZW64LaFPZcxxD9vM2tZ6txLeMUmGftPoVSwKBgQCRWeNxbvTs8U5UknrdDZHUwXUmy5Qg2LUzxDXdbZXgolMh0AgDShcEFvaF+G3OFHj9vovytt0HtEXyC9LEc6w/a08mtGHiAJbjyjrJCHRNrcFflEm1xseIqXQXDj5Tw05XkAnlWN+r0w3Ix45+GrNhMOGfDkVyQeYI5Jsxxt0dPwKBgFJwcWr4HtQoOSnctKSffCovDfycL7QXtukT18BMb/611F0TxtiKCdfoZ4vvm454GUFJhxF7ZIm0zoid9/15LiNgZp1VKynVw878Epx8FvZEql6tbMTE4DBr41BgK46k2WPB3T1do5HmBVthfnGdGM4Gj+bUII6c3BoEKZNieCeZAoGAQ3rx5wXWW/KjpQvkUqAsJhQyqXI2MRGq/n+Hamen/4QdCEOmlLBfAx0OEqCFifljOpquKl7POvZsyrTGg0IYo9DUDGoOT3hqlRKcPBzasf2LGy6jEetZU48oQFPyh7zSsEBE999M6F6xtZdABjerM+IXvVpIz4TcoSBRFMj4es0CgYEAiNCbs2YPKBFpJq9EYsSsx0GwXAItXFAM71TogWs/8InGNq0PYRZTn9Lq6mFEyLkFql1zWQkS7CG3uDPBV+V2G4MbvoZeFgiQmly7uMQJwbEiKjJBsOzkYY2ZhFYLjGUpGer2U82XeEU6F/Vh4FLkVEE2iB3nPpVQs0qPZxfFZvM=

My PKCS1 private key is:MIIEowIBAAKCAQEAifTfGE5tMBLgcnuc0omSp3DSIOlgb0x44OHWHPQR9M0fi3h3f41aPiJ6zIiBYG5Z3+3mCf8JTxuXEjDEskDB4/+6NKa3PlWbKotZo1/PCJyuKg5eqhQRa4OHUawgMCCy1Tj/6aVFN7KLjJp2J7zklMriwZ4Up6PKk6RUm3BQJD2h0ZlJnE7VT1rjTWz2mVZTZ/NYpiCFcPCyszsws/QjTXIpJL21JWaf3GdBZd7OonKjgo0b2poPCi2SbPQ+dkttF+tMp63hCJ/IOpa++28jhggkcKXTJfQpfPVpmwtwN0SoexkT7Y8sdweWkKhN7CubDU/B/PxKnJ0HvEKFQbO8dQIDAQABAoIBAGxOrwfqKpbfew7mNUylbVm/nXjxQCChLRWAuBSrGZ3TnLxmq4qccwjtEPObB9epSy4fG8clTy2oP4asewBnDtHtZ0cGzD5H/zX7iThWc7gTKjkiZveoIbUC4i4gsHSYd04nHeNVOW5s4lpUugagqeSXFEdl0Fl8ogIftb0DBCguegjT8a+4plyE0uwWHWNKohojgDXKBCYX0F5+AY8xJthSbn3ZR1uvyHkWGfO+Bxd/+2lDsoW52qcWB1PT84nDHPV8HqzHFzBrzn01JwrUVTjS5+44pJ26cHWdXfD6CLVGbml3QMmOsBR2Rfir8qxKDldHlkWMz4JLtqEjA+yHJFECgYEA8vnraIIpftxfEv6ltVohupdrS8eXMKtwJPcHjdczqPAON6G7V0cVtm+Hw3qJfMui5mGiFvZCpitKhxMeS6FEh+1TdxYoDaRUmuprlSVLmPqG+B9yXvodz2qm8IVRc4w6H7iKJT4iWVuuC2hT2XMcQ/bzNrWercS3jFJhn7T6FUsCgYEAkVnjcW707PFOVJJ63Q2R1MF1JsuUINi1M8Q13W2V4KJTIdAIA0oXBBb2hfhtzhR4/b6L8rbdB7RF8gvSxHOsP2tPJrRh4gCW48o6yQh0Ta3BX5RJtcbHiKl0Fw4+U8NOV5AJ5Vjfq9MNyMeOfhqzYTDhnw5FckHmCOSbMcbdHT8CgYBScHFq+B7UKDkp3LSkn3wqLw38nC+0F7bpE9fATG/+tdRdE8bYignX6GeL75uOeBlBSYcRe2SJtM6Inff9eS4jYGadVSsp1cPO/BKcfBb2RKperWzExOAwa+NQYCuOpNljwd09XaOR5gVbYX5xnRjOBo/m1CCOnNwaBCmTYngnmQKBgEN68ecF1lvyo6UL5FKgLCYUMqlyNjERqv5/h2pnp/+EHQhDppSwXwMdDhKghYn5Yzqaripezzr2bMq0xoNCGKPQ1AxqDk94apUSnDwc2rH9ixsuoxHrWVOPKEBT8oe80rBARPffTOhesbWXQAY3qzPiF71aSM+E3KEgURTI+HrNAoGBAIjQm7NmDygRaSavRGLErMdBsFwCLVxQDO9U6IFrP/CJxjatD2EWU5/S6uphRMi5Bapdc1kJEuwht7gzwVfldhuDG76GXhYIkJpcu7jECcGxIioyQbDs5GGNmYRWC4xlKRnq9lPNl3hFOhf1YeBS5FRBNogd5z6VULNKj2cXxWbz

The string to be signed is:123456789

The result of calculating the signature using SHA256WithRSA is:F1kKldW4u0xdSzMqehHLtrX6ntK6gjlZ1Nu1IwcCYAvGe+K9/+9VZymbyNjw038ZcxGspnDqcz7+UnqqJ8gBPpMZ4yZb/NdS5TNqruuSooj2jgPk/PlM+uFH97NlMDuUdGVaflujhcaG9irkq48PHQ1+swaELq7mKov7NU155k7bRPWjNzIggxF5Sgh3qcOBpeWVxp/WghRsjfO4O0tRohiOK5pdcAPkj5VlunUgW0/Yv/uC9sV8dodLloUNWG6W0c/pEJnsG48pLLmhag5tzKm7nbHHUrRyLv37+qAuG9S5eZvKUaVbuFwxP2ekSLHRRIQVlBeJbuqfHRQXxzZaJw==

My public key is:MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAifTfGE5tMBLgcnuc0omSp3DSIOlgb0x44OHWHPQR9M0fi3h3f41aPiJ6zIiBYG5Z3+3mCf8JTxuXEjDEskDB4/+6NKa3PlWbKotZo1/PCJyuKg5eqhQRa4OHUawgMCCy1Tj/6aVFN7KLjJp2J7zklMriwZ4Up6PKk6RUm3BQJD2h0ZlJnE7VT1rjTWz2mVZTZ/NYpiCFcPCyszsws/QjTXIpJL21JWaf3GdBZd7OonKjgo0b2poPCi2SbPQ+dkttF+tMp63hCJ/IOpa++28jhggkcKXTJfQpfPVpmwtwN0SoexkT7Y8sdweWkKhN7CubDU/B/PxKnJ0HvEKFQbO8dQIDAQAB

Signature Verification Result:true

5. Include the Generated Signature in the sign Parameter of Your HTTP Request

Example Code

Here’s an example using the Java SDK to demonstrate RSA signature verification. For the complete code, please refer to: Java SDK
